Description:

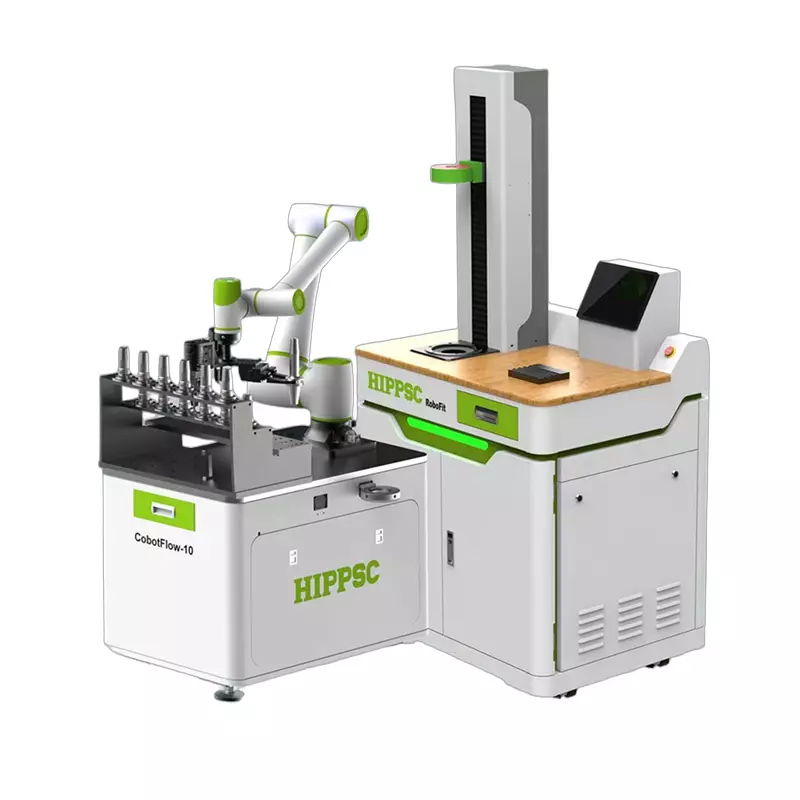

HIPPSC Tool Loading & Presetting Automation Cell is an advanced robotic workcell engineered to fully automate the entire tool preparation workflow – from loading and assembly to presetting and measurement. Designed for high‑volume production environments and lights‑out manufacturing, this automation cell integrates intelligent robotics, induction shrinking technology, and high‑precision laser measurement into a single, seamlessly coordinated system.

At the core of the system is a multi‑axis robot that handles the complete tool handling sequence: retrieving used tool assemblies, inserting new cutting tools, performing automated shrink‑fit clamping, and precisely measuring assembled tools. The integrated heat shrink technology ensures consistent thermal expansion and contraction cycles, while the high‑performance vision and laser measurement system captures critical parameters including tool overhang, diameter, and runout with micron‑level accuracy.

Data flows seamlessly throughout the process. The automation cell reads tool identification via Data Matrix codes or optional RFID tags, automatically transfers measurement data to the CNC machine control and central databases, and eliminates manual data entry errors-. This closed‑loop data integration ensures that every tool assembly is correctly configured and ready for production without operator intervention.

Built for 24/7 continuous operation, the Automation Cell significantly reduces non‑cut time, minimizes setup bottlenecks, and enables unattended machining with minimal human interaction. Whether you are equipping a high‑mix job shop or scaling up for mass production, HIPPSC Automation Cell delivers the speed, precision, and reliability to transform your tool room into a fully automated, data‑driven production hub.

Key Features:

• Fully automated tool loading, assembly, shrinking, and presetting

• Multi‑axis robotic handling with high repeatability (±0.003 mm)

• Integrated induction shrinking and air cooling technology

• High‑performance camera system for tool ID reading and overhang measurement

• Laser precision measurement of complete tool assemblies

• Seamless data transfer to CNC controls and databases via Ethernet

• Designed for 24/7 lights‑out operation
