Description:

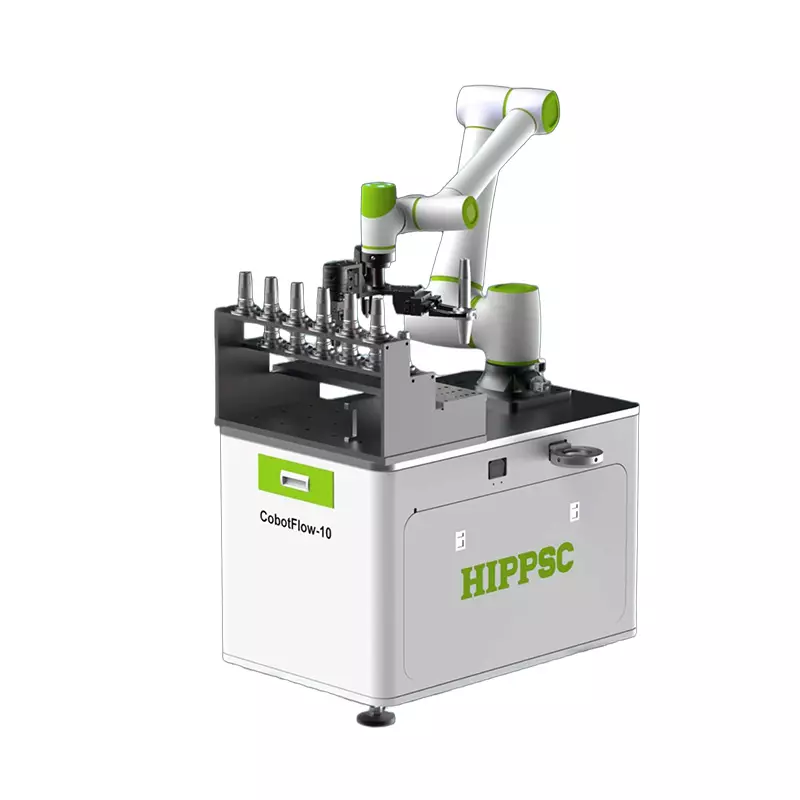

HIPPSC Tool Loading & Presetting Robot is an advanced robotic system engineered to fully automate the tool preparation workflow – from loading and assembly to presetting and measurement. Designed for high‑volume production environments and lights‑out manufacturing, this robotic cell integrates intelligent robotics, induction shrinking technology, and high‑precision laser measurement into a single, seamlessly coordinated system.

At the core of the system is a multi‑axis industrial robot that handles the complete tool handling sequence: retrieving used tool assemblies from the magazine, inserting new cutting tools, performing automated shrink‑fit clamping, and precisely measuring the assembled tools. The integrated heat shrink technology ensures consistent thermal expansion and contraction cycles, while the high‑performance laser measurement system captures critical parameters including tool overhang, diameter, and runout with micron‑level accuracy.

Data flows seamlessly throughout the process. The robot system reads tool identification via Data Matrix codes or optional RFID tags, automatically transfers measurement data to the CNC machine control and central databases, and eliminates manual data entry errors. This closed‑loop data integration ensures that every tool assembly is correctly configured and ready for production without operator intervention.

Built for continuous operation, the robot significantly reduces non‑cut time, minimizes setup bottlenecks, and enables unattended machining with minimal human interaction. Whether you are equipping a high‑mix job shop or scaling up for mass production, HIPPSC Tool Loading & Presetting Robot delivers the speed, precision, and reliability to transform your tool room into a fully automated, data‑driven production hub.

Key Features:

• Automated tool loading, shrink‑fit assembly, and presetting in one robotic cell

• Multi‑axis industrial robot with high repeatability (±0.003 mm)

• Integrated induction shrinking and air cooling technology

• Laser precision measurement of complete tool assemblies

• Data Matrix / RFID tool identification with seamless data transfer to CNC

• Designed for 24/7 unattended operation
